P1.25 COB

Home / product / P1.25 COB

P1.25 COB

Regal-3

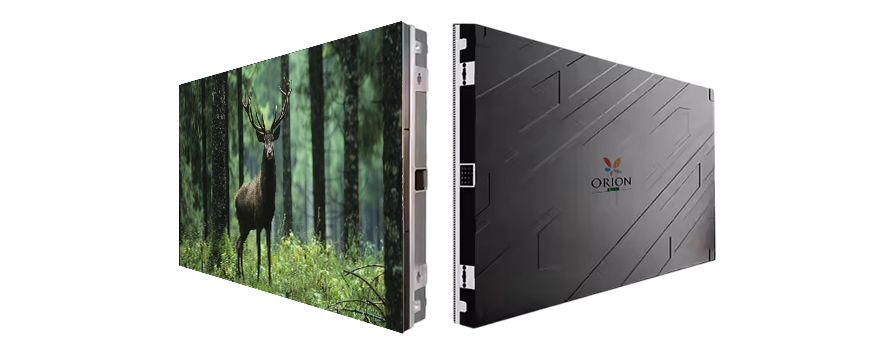

The Orion P1.25 Indoor Rigel Series is a cutting-edge LED display solution designed for high-performance indoor applications. Installation is simplified through the use of flight plugs and side locks, while a fanless metal cooling structure ensures efficient heat dissipation with zero noise. The display supports full front access and wall mounting, making maintenance and component replacement quick and hassle-free. The display delivers vivid, true-to-life images with excellent gradation for a refined visual experience. With the pixel density of 640,000 pixels per square meter, and a brightness level of 700 cd/m², it is well suited for a wide range of professional environments including control rooms, broadcast studios, and high end corporate venues. Its wide viewing angles of 160° horizontal and 140° vertical further enhance visibility, while lightweight 640×480 mm cabinets (only 6.5 kg each) offer flexible and space-saving installation.
  • Die-Cast Aluminum
  • Seamless Splicing
  • Anti-Reflection Mask
  • Side Lock Design
  • Front Access
  • Noiseless Operation
  • 3 Years Standard Warranty
  • Extendable up to 5 Years

Technical Parameters

No.ParameterValue
S.NoProduct ParameterCOB P1.25mm
1LED TypeCOB
2Pixel Pitch(mm)P1.25
3Pixel Density (pixels/ ㎡)640,000
4Cabinet Dimension(mm)600 x 337.5
5Cabinet Resolution(dot)(WXM)480 x 270
6Module Dimension(mm)150 x 168.75
7Module Resolution(dot)(WXM)120 x 135
8Module quantity(WXM)4 x 2
9Cabinet materialDie-casting Aluminum
10Viewing AngleH 170° , V 170°
11Brightness≥600 ㎡
12Color uniformity≥90%
13Contrast Ratio10000:1
14Color Temperature5000-12000 Optional
15Frame-changing Frequently50/60
16Drive Method1/60
17Connection TechnologyCommon Anode
18Refresh rate≥3840HZ
19Max. Power Consumption (w/m²)420
20Avg. Power Consumption (w/m²)150
21Service AccessTOTAL FRONT ACCESS
22IP GradeIP31
23Operating Temp/Humidity0℃ 50℃, 10 90%RH
24Storage Temp/Humidity0℃ 60℃, 10 90%RH
25Weight/Cabinet(KGS)≤4.5KGS
26System ControllerNovastar
