P1.5 COB

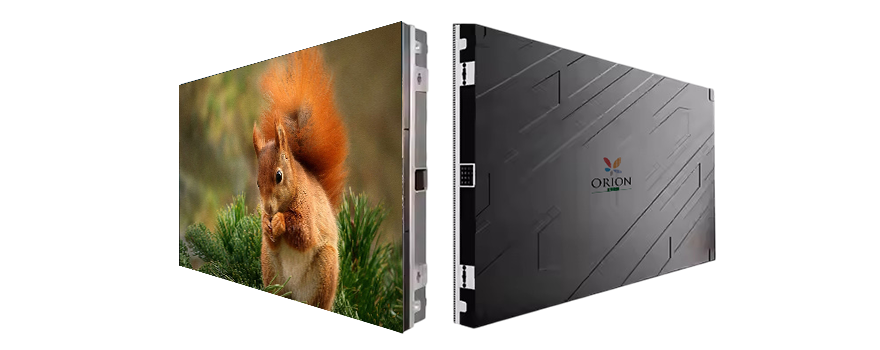

Regal-5
The Orion P1.5 Indoor Rigel Series is engineered for superior indoor display performance, especially in environments with strong ambient lighting. Its specialized mask design effectively reduces light reflection, ensuring clear and vivid visuals. Equipped with black 3-in-1 COB LEDs, the display delivers a wide viewing angle. Components such as Nationstar LED chips and encapsulation, a 4-layer PCB, and the ICN2153 driver IC ensure stable performance and long-lasting visual excellence. The modular cabinet design allows for flexible sizing, making custom configurations easy to implement. Built with advanced surface mount technology, the system ensures precise paste application, automatically rejecting any defects to maintain high production yield.
  • Nationstar Encapsulation
  • Seamless Splicing
  • Anti-Reflection Mask
  • Magnetic Front Service
  • Front/Rear Access
  • Noiseless Operation
  • 3 Years Standard Warranty
  • Extendable up to 5 Years

Technical Parameters

No.ParameterValue
S.NoProduct ParameterCOB P1.5mm
1LED TypeCOB
2Pixel Pitch(mm)P1.56
3Pixel Density (pixels/ ㎡)409,600
4Cabinet Dimension(mm)600 x 337.5
5Cabinet Resolution(dot)(WXM)384 x 216
6Module Dimension(mm)150 x 168.75
7Module Resolution(dot)(WXM)96 x 108
8Module quantity(WXM)4 x 2
9Cabinet materialDie-casting Aluminum
10Viewing AngleH 170°, V 170°
11Brightness≥600 ㎡
12Color uniformity≥90%
13Contrast Ratio10000:1
14Color Temperature5000-12000 Optional
15Frame-changing Frequently50/60
16Drive Method1/48
17Connection TechnologyCommon Anode
18Refresh rate≥3840HZ
19Max. Power Consumption (w/m²)420
20Avg. Power Consumption (w/m²)150
21Service AccessTOTAL FRONT ACCESS
22IP GradeIP31
23Operating Temp/Humidity0℃~50℃, 10~90%RH
24Storage Temp/Humidity0℃~60℃, 10~90%RH
25Weight/Cabinet(KGS)≤4.5KGS
26System ControllerNovastar
