P6.6 SMD

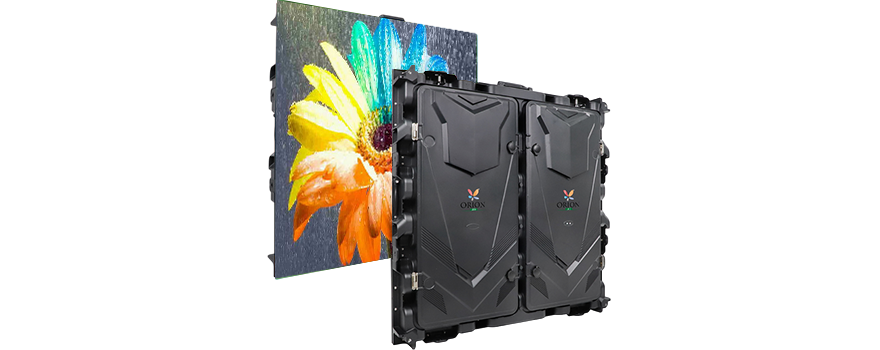

Screen-1
The Orion P6.6 Outdoor Betelgeuse Series is a high performance outdoor display solution designed to meet demanding visual and environmental requirements. All outdoor products in this series are IP65 rated, ensuring superior protection against dust and water, while delivering high brightness and contrast for exceptional visibility. A specially engineered louver design enhances contrast and allows clear viewing even in bright daylight without compromising the viewing angle, making it ideal for both indoor and outdoor applications. Utilizing the most advanced surface mount technology, the series ensures precise control over paste application, automatically rejecting nonconforming prints to maintain a high overall yield rate. Only the highest quality PCBA materials are used, with every PCB undergoing a minimum of 24 hours of heat treatment before SMD LED mounting, ensuring durability and reliability. Additionally, all color-coded cables are of premium quality, and each cabinet is equipped with a fuse to guarantee safety during installation and maintenance.
  • IP65 Rating
  • Outdoor-Ready Durability
  • Dual-Use Flexibility
  • Automated Quality Control
  • Built-in Fuse in Each Cabinet
  • Clear Internal Cable Connection
  • 5 Years Standard Warranty
  • Extendable up to 7 Years

Technical Parameters

No.ParameterValue
S.NoProduct ParameterSMD P6.6mm
1Pixel Pitch in mmP6.6
2Pixel Density in sqm23,104
3Module Size in mm320 x 160
4Cabinet Size in mm960 x 960
5Cabinet Weight in KG27
6Viewing Angle in H/VCustomised
7Brightness in cd/sqm6,000
8Color Depth16 Bit
9Refresh Rate in Hz≥3840
10Voltage220v
11Avg. Power Consumption (W)300
12Max Power Consumption (W)700
13Service ExcessRear
14IP Grade Front/Rear65/54
15Operating Temperature (-/+)–10℃~+65℃
16Operating Humidity0-99%
17Life Time in hrs1,00,000
18MTBF in hrs10,000

Component Parameters

No.ComponentValue
S.NoComponent ParameterSMD P6.6mm
1LED ChipNation star Gold Bond
2PCB4 Layer
3Driver ICMBI/ICN
4Power SupplyMeanwell
5ControllerNova
6Cabinet MaterialDie Cast
