P1.53 SMD

flexible1

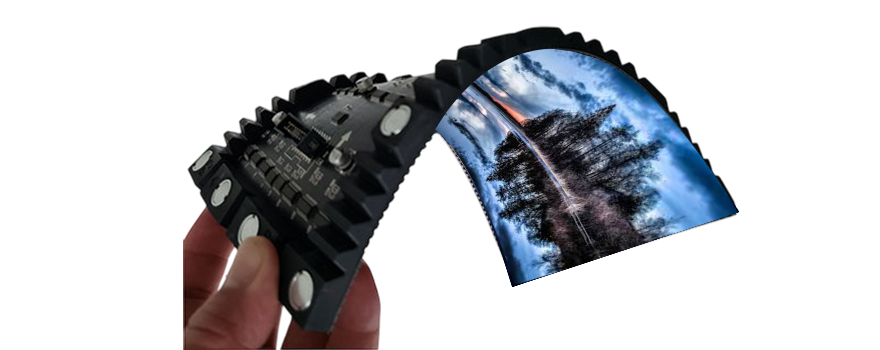

The Orion P1.53mm Flexible Series LED display is a highly adaptable and innovative solution designed for creative and unconventional visual setups. Its strong magnetic flexible modules allow for front-service installation, making it ideal for complex and special-shaped structures where maintenance accessibility is crucial. Built with high-quality silicone materials for both the PCB base and tray along with copper pillar welding and precise screw placements the series ensures superior screen flatness and optimal visual performance.
  • UHD Picture Quality
  • Light Weight
  • Ultra-Thin Display
  • Soft Rubber Module
  • 2 Years Standard Warranty
  • Extendable up to 3 Years

Technical Parameters

No.ParameterValue
S. No.Product ParameterSMD P1.53m
1.LED TypeBlack SMD1212
2.Pixel Pitch(mm)1.53
3.Drive Method1/43
4.Module Size(mm)320 x 160mm
5.Module Resolution(pixel)208 x 104
6.Pixel Density427,185pixels/m²
7.Viewing AngleH 140", V 140*
8.Brightness300-800cd/m²
9.Refresh Rate(Hz)≥3840
10.Frame Rate(Hz)≥50-60
11.Voltage(V)AC 110/220V
12.Avg. Power Consumption200W/m²
13.Max. Power Consumption600W/m²
14.Service AccessTotal Front Access
15.IP GradeIP31
16.Operating Temp/Humidity0C~50° ℃ ,10~90%RH
17.Storage Temp/HumidityC-60° ℃ ,10–90%RH
18.Lifetime(Normal Temp)≥100,000H@50% brightness
19.Cabinet Frame Size(mm)Customized Cabinet
20.Cabinet Type and MaterialSheet metal
21.Screen resolutionCustomized
22.Cabinet Weight (Kg)32 KG Per sqm
