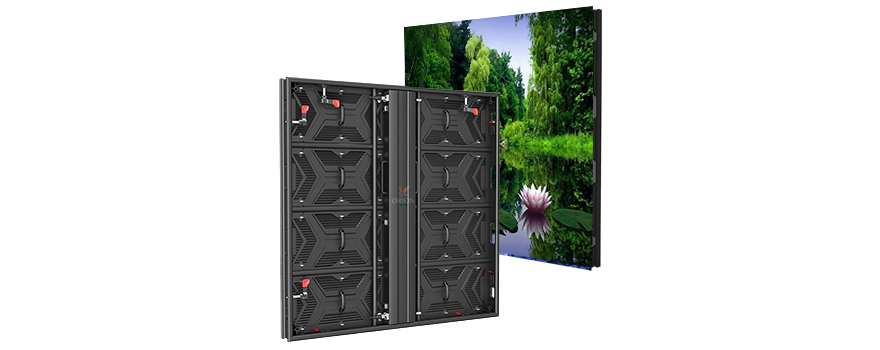

P10.41 SMD

Home / product / P10.41 SMD

P10.41 SMD

Modular.6
Modular Series P10.41mm is purpose-built for ultra-large outdoor displays where content needs to be seen from long distances with clarity and impact. It maintains strong brightness and consistent playback without putting stress on performance or power. This model also supports both front and rear servicing, making it easy to maintain even in high or hard-to-reach installations. Its rugged build is made to handle all kinds of weather from scorching sun to heavy rain while keeping visuals vibrant and dependable. For large-format outdoor messaging that demands reach, durability, and simplicity, the P10mm model gets the job done without compromise.
  • Bold, High-Impact Imagery
  • Dual Maintenance Access
  • Seamless Motion Display
  • Easy Service Access
  • Low-Maintenance Reliability
  • 3/5 Years Standard Warranty
  • Expandable up to 5/7 Years
  • Slim Design

Technical Parameters

No.ParameterValue
S.NoProduct ParameterP10.41mm SMD
1SMD TypeNationstar SMD2727 Copper Wire/Gold Wire
2Physical Density (dots/sqm)9216
3Panel Dimension Wx H X Depth in mm1000 x 1000 x 83
4Module size W x H in mm500mm x 250mm
5Cabinet resolution96 x 96
6Module resolution48 x 24
7Cabinet weight in Kg25
8Cabinet materialAluminum profile
9Maintenance ModeFront and Rear
10Brightness nits6500nits
11Viewing Angle H/V140/140
12Contrast Ratio6000:1
13Scan Ratio1/2
14Refresh Rate3840Hz
15Max power consumption per sqm650watt
16Average power consumption per sqm230watt
17Working TemperatureNEGATIVE 20C TO +65C
18Storage Temperature0C TO +35C
19IP rating Front / RearIP65
20CertificationCE, BIS, ROHS
