P3.91 SMD

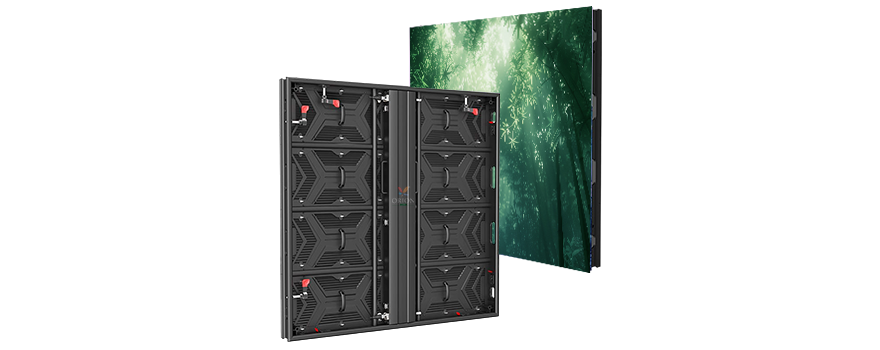

Modular.1
Outdoor P3.91 Modular Series is built for high impact outdoor visuals, delivering an impressive brightness of 5500 nits for clear, vibrant images even under direct sunlight. With a high refresh rate of 3840Hz, motion stays smooth and flicker-free perfect for dynamic content. Designed with a pixel density of 62,500 dots per square meter, it ensures sharp detail and excellent image clarity. The display also offers front and rear maintenance access, making servicing quick and convenient. Plus, with a robust IP65 rating on both the front and rear, it’s fully protected against dust and water ready to perform in any weather.
  • Weatherproof Design
  • High Refresh Rate
  • Dual Maintenance Access
  • Versatile Applications
  • Modular Flexibility
  • 3/5 Years Standard Warranty
  • Expandable up to 5/7 Years
  • Slim Design

Technical Parameters

No.ParameterValue
S.NoProduct ParameterP3.91mm SMD
1SMD TypeNationstar SMD1921 Copper Wire/Gold Wire
2Physical Density (dots/sqm)65536
3Panel Dimension Wx H X Depth in mm1000 x 1000 x 83
4Module size W x H in mm500mm x 250mm
5Cabinet resolution256 x 256
6Module resolution128 x 64
7Cabinet weight in Kg25
8Cabinet materialAluminum profile
9Maintenance ModeFront and Rear
10Brightness nits5500nits
11Viewing Angle H/V140/140
12Contrast Ratio5000:1
13Scan Ratio1/8
14Refresh Rate3840Hz
15Max power consumption per sqm650watt
16Average power consumption per sqm230watt
17Working TemperatureNEGATIVE 20C TO +65C
18Storage Temperature0C TO +35C
19IP rating Front / RearIP65
20CertificationCE, BIS,ROHS
