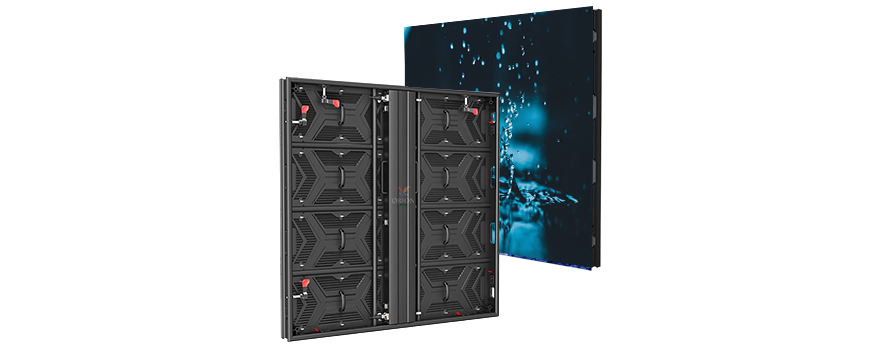

P6.25 SMD

Modular.4
Modular Series P6.25mm is designed for large scale outdoor displays where bold visuals and long-distance visibility matter most. With wider pixel spacing and a slightly lower density. This screen handles motion beautifully, delivering smooth video playback that looks natural and crisp great for animations, live feeds, and fast moving content. It also offers convenient access from both the front and rear, making maintenance simple and flexible depending on your setup. Built to withstand the elements, the P6.25mm model features a rugged, weatherproof design that stands up to rain, dust, and everyday outdoor conditions.
  • Optimized for Distance Viewing
  • Smooth Motion Playback
  • Dual Maintenance Access
  • Fluid Visual Experience
  • Balanced Visual Impact
  • Outdoor-Ready Build
  • 3/5 Years Standard Warranty
  • Expandable up to 5/7 Years
  • Slim Design

Technical Parameters

No.ParameterValue
S.NoProduct ParameterP6.25mm SMD
1SMD TypeNationstar SMD2727 Copper Wire/Gold Wire
2Physical Density (dots/sqm)25600
3Panel Dimension Wx H X Depth in mm1000 x 1000 x 83
4Module size W x H in mm500mm x 250mm
5Cabinet resolution160 x 160
6Module resolution80 x 40
7Cabinet weight in Kg25
8Cabinet materialAluminum profile
9Maintenance ModeFront and Rear
10Brightness nits6,000nits
11Viewing Angle H/V140/140
12Contrast Ratio5000:1
13Scan Ratio1/8
14Refresh Rate3840Hz
15Max power consumption per sqm650watt
16Average power consumption per sqm230watt
17Working TemperatureNEGATIVE 20C TO +65C
18Storage Temperature0C TO +35C
19IP rating Front / RearIP65
20CertificationCE, BIS,ROHS
