Real-Time Environmental & AQI Monitoring Network for CPCB Across Lucknow & Varanasi
At high-footfall urban transit hubs and civic centers across Lucknow and Varanasi, Orion LED successfully engineered and deployed a centralized network of high-brightness outdoor LED displays for the Central Pollution Control Board (CPCB). Designed to drive public awareness around air quality and pollution mitigation, the installation features standalone P6.6mm Outdoor LED displays engineered with Orion’s self-developed high-contrast mask technology, heavy-duty 4-layer PCBs, and NovaStar TB40 centralized cloud control. Operating at an actual brightness of 7,500 nits, these IP65-rated displays deliver seamless, real-time AQI readings and scheduled civic awareness content under direct sunlight.
Client Requirement
The Central Pollution Control Board (CPCB) required a robust, high-resolution digital display infrastructure across key municipal zones in Uttar Pradesh to:
Broadcast Real-Time Environmental Telemetry
Deliver High Daylight Readability
Run continuous, high-brightness displays while keeping operational power consumption low.
Enable Multi-City Centralized Control
Key Challenges & On-Site Solutions
Executing this project required overcoming multiple structural and execution-level constraints:
Restricted Working Hours in High-Traffic Public Areas
High-footfall locations like Hazratganj Chauraha and Santamulak Chauraha experience continuous traffic and pedestrian movement, making daytime crane operations and structural fitting unfeasible.
Multi-Agency Local Authority Approvals
The Challenge: Securing No Objection Certificates (NOCs), structural safety approvals, and electrical permissions across multiple municipal corporations and police jurisdictions in two cities could lead to project delays
Continuous Outdoor Weathering & Thermal Stress
How It Was Overcome: Displays were built with IP65-rated ingress protection (front and rear) to prevent water and dust penetration. Integrated industrial surge arrestors protect internal components against power grid spikes.
Real-Time Data Synchronization Across Multi-City Locations
The Challenge: Fetching dynamic live AQI data feeds from CPCB servers alongside pre-scheduled civic awareness videos required uninterrupted connectivity and fail-safe playback.
The Orion LED Solution
Orion LED custom-engineered a site-optimized outdoor LED display solution tailored for public information dissemination.
P6.6mm Outdoor Standalone Displays
Optimal pixel pitch offering sharp text legibility for both slow-moving vehicle traffic and pedestrians.
Self-Developed High-Mask Module Design
Specially designed mask geometry enhances optical contrast and light projection, enabling 7,500 nits actual brightness with significantly lower energy draw compared to standard market modules.
4-Layer PCB Architecture
Provides superior heat dispersion across the circuit board, reducing thermal stress on components and expanding operational lifespan.
Nationstar Copper-Bonded Bulbs
Industrial-grade LED lamps ensuring color uniformity, high refresh rate stability, and long-term diode reliability.
NovaStar TB40 Cloud Control
Enabled seamless switching between live CPCB environmental data APIs and scheduled video content across all five screen locations simultaneously.
The Result
The newly installed CPCB outdoor display network has transformed high-visibility corridors in Lucknow and Varanasi into interactive public information hubs. By providing clear, high-contrast AQI and weather updates alongside pollution awareness content, CPCB has established a transparent communication channel to educate citizens and foster community action toward pollution reduction.
Project Snapshot
Orion LED engineered a site-specific outdoor LED solution, optimized for real-world viewing behavior and long-term performance:
Client: Central Pollution Control Board (CPCB)
Location: Santamulak Chauraha, Hazratganj Chauraha, CPCB Regional Office, Vibhuti Khand
Varanasi Locations: Sigra Police Station (Gulab Park), Circuit House
Product Series: Astra Core Outdoor P6.6mm Standalone Display
Display Dimensions: 6.3 ft × 6.3 ft (Per Display)
Total Deployed Area: 195.45 sq. ft (Cumulative across 5 installations)
Actual Brightness: 7,500 Nits
PCB Structure: 4-Layer Heavy-Duty PCB
Controller System: NovaStar TB40 Multimedia Player (Centralized Cloud CMS)
Content Type: Real-Time Live AQI / Environmental Telemetry + Scheduled Awareness Media
Purpose: Civic Public Awareness & Air Quality Monitoring (DOOH Public Sector)

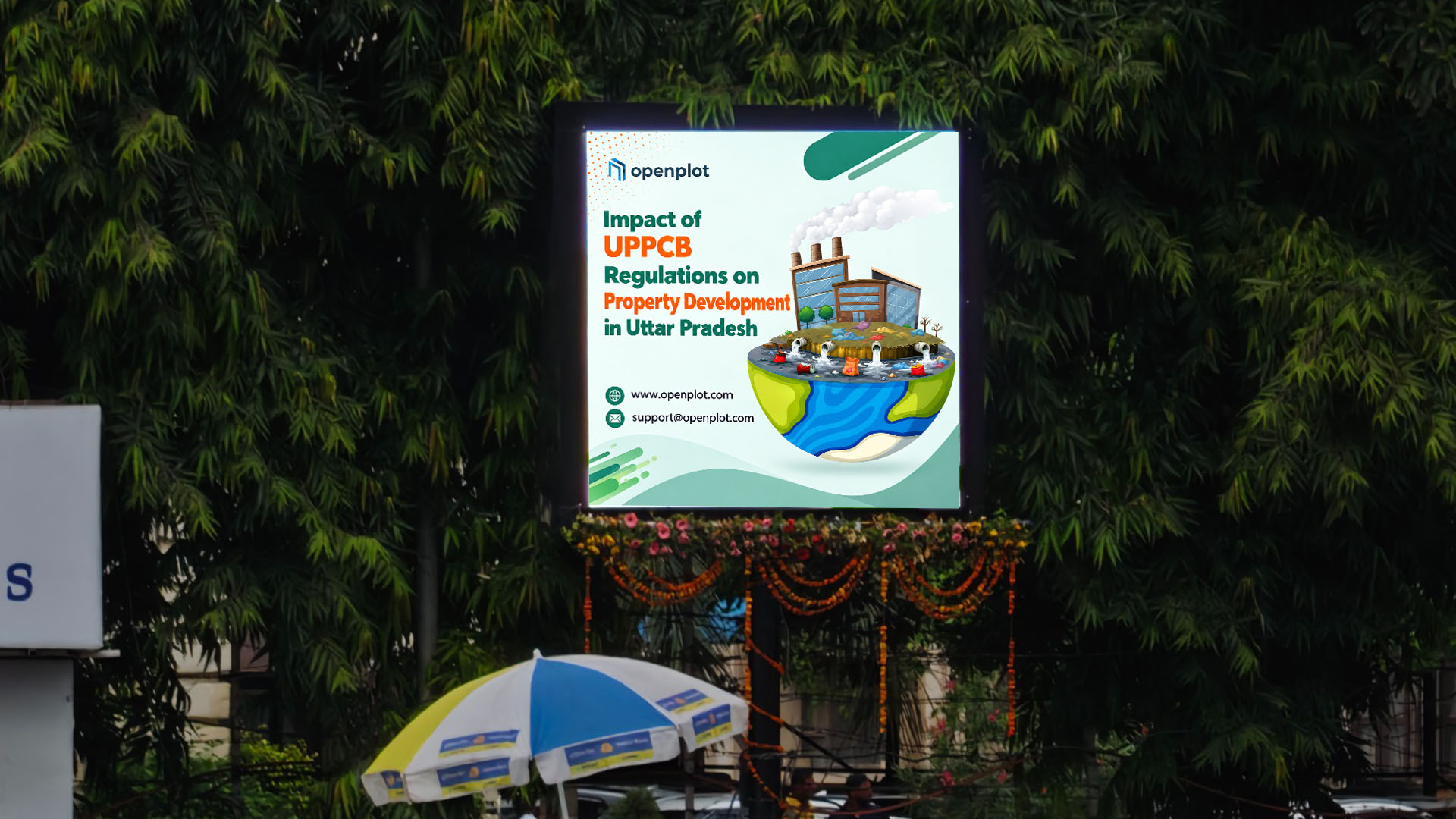

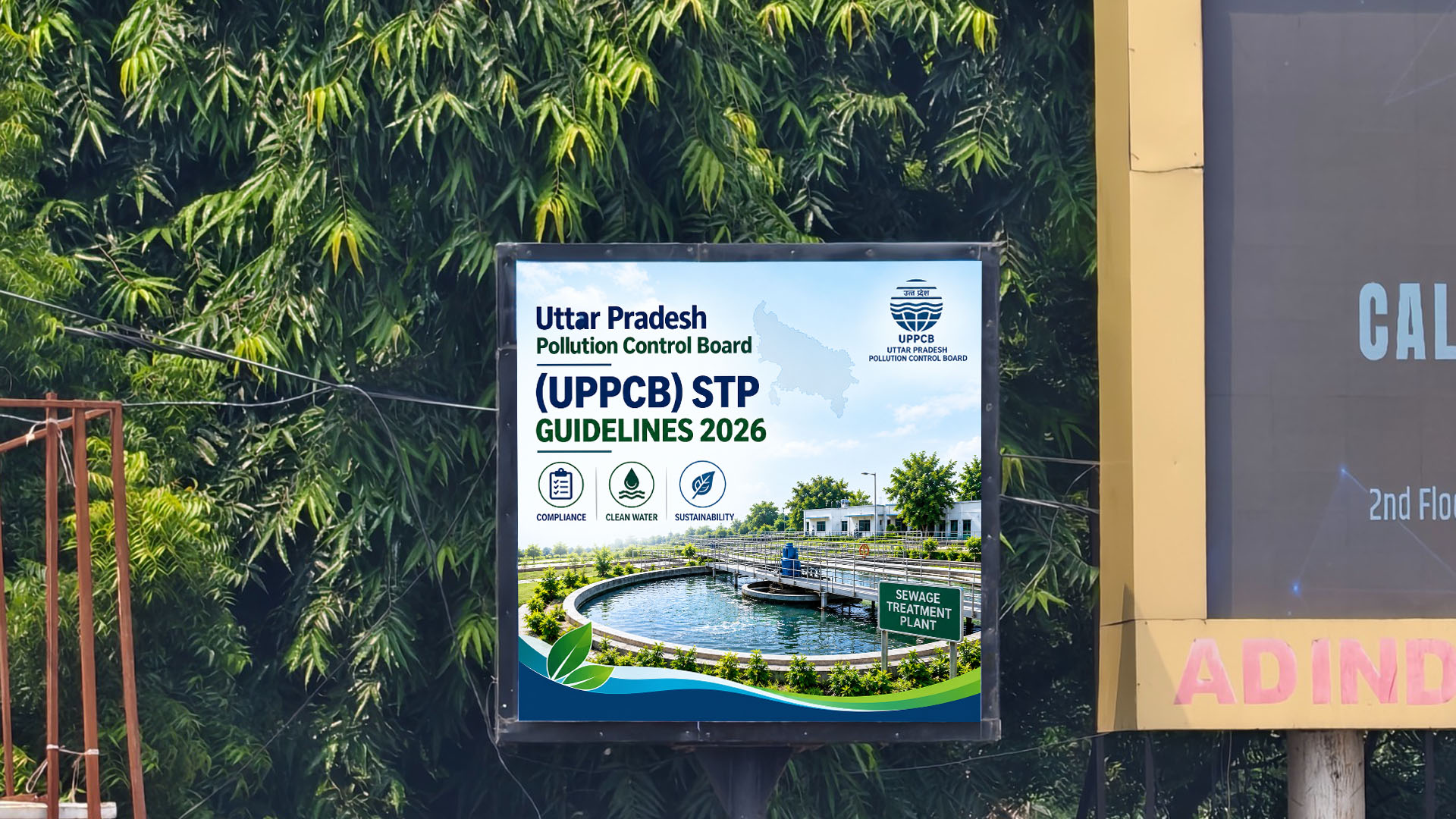

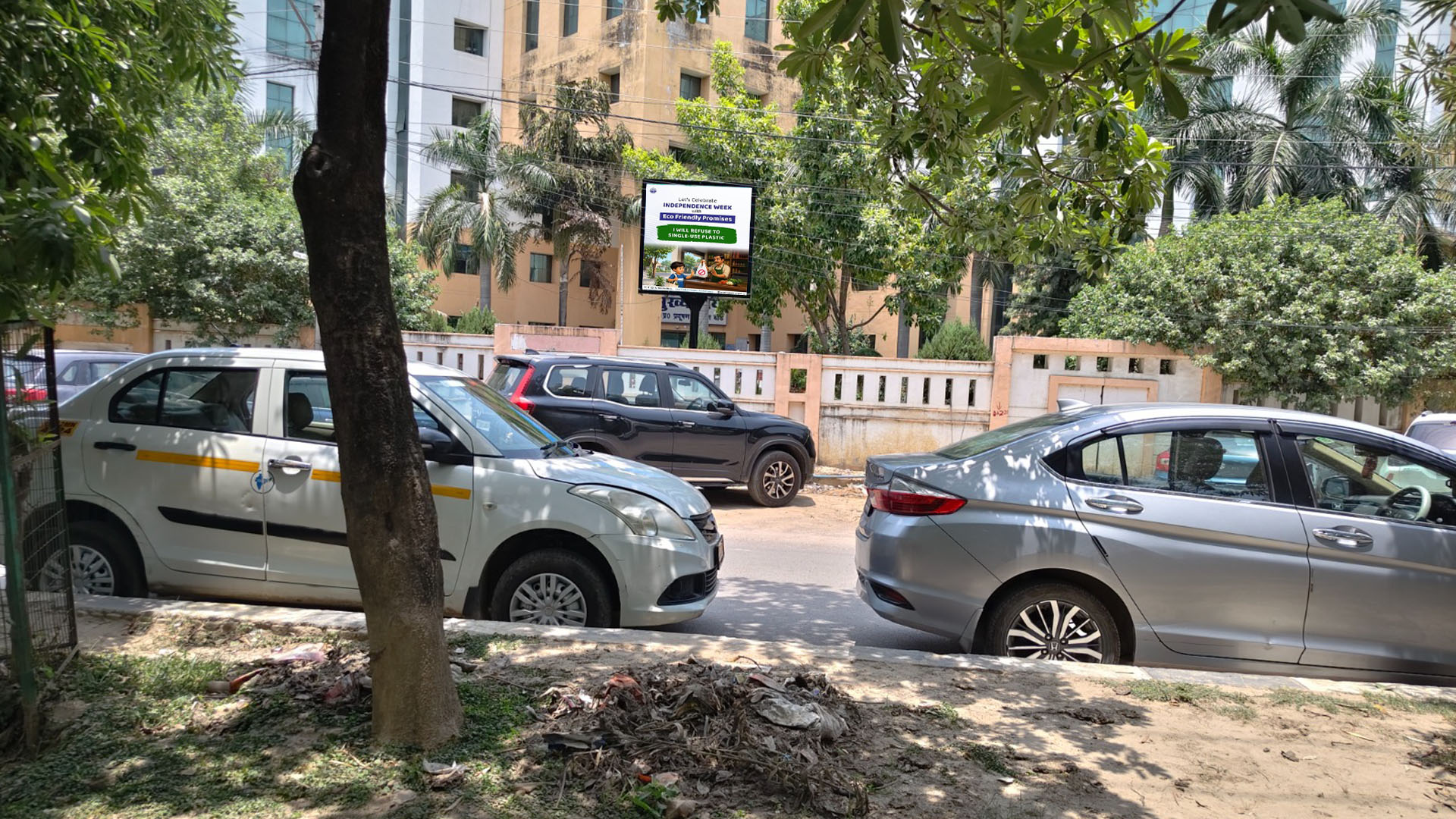

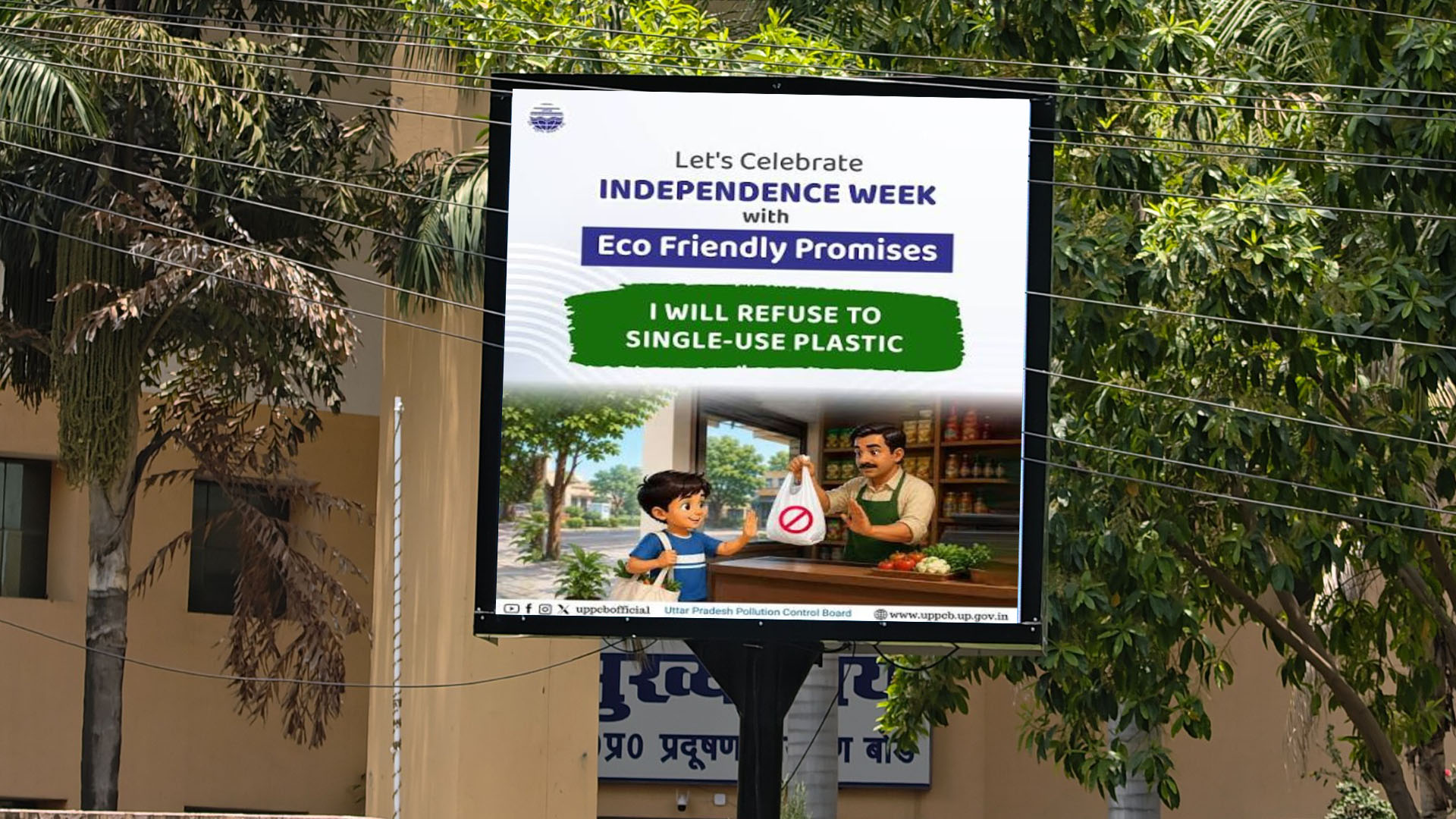

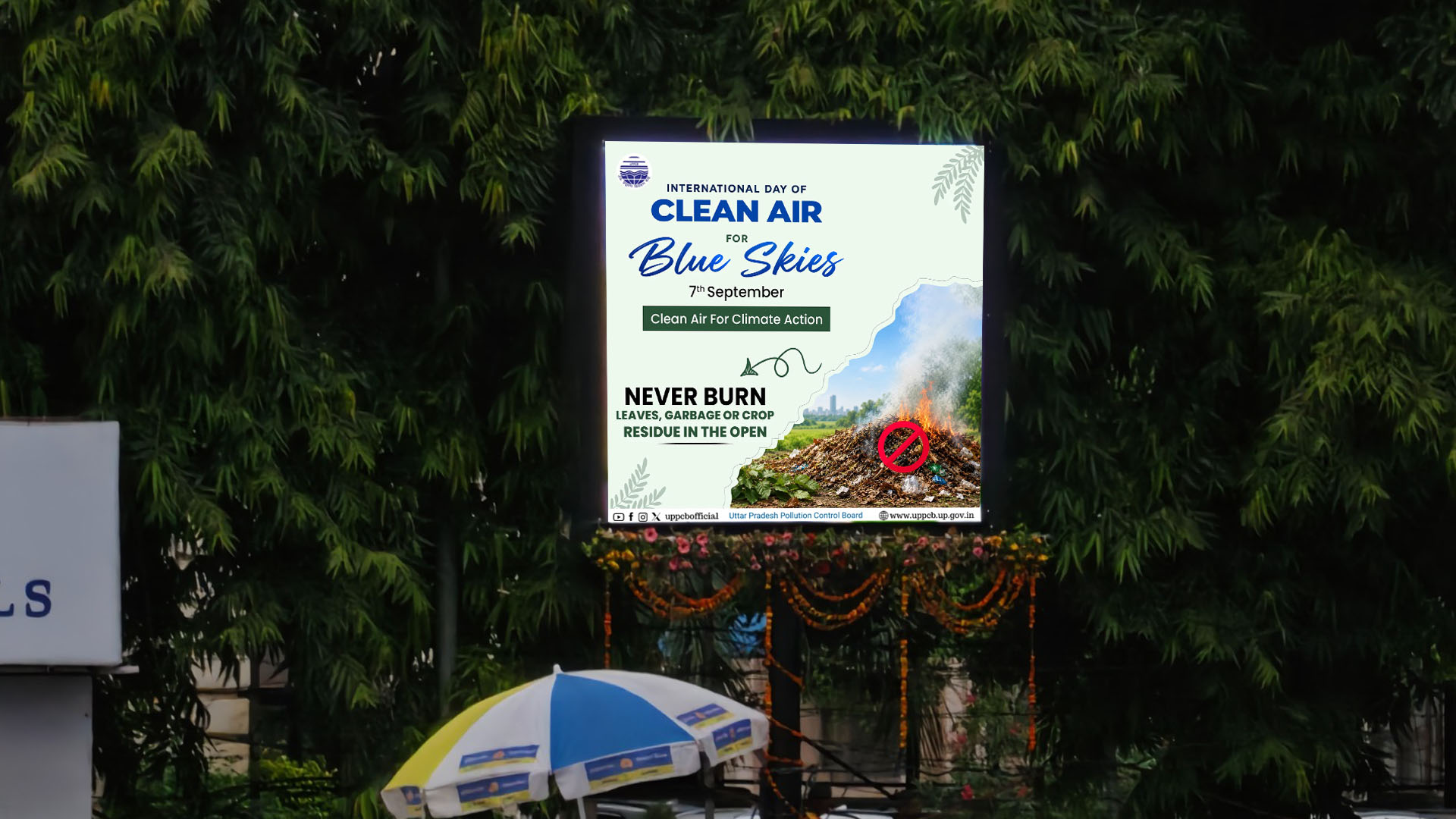

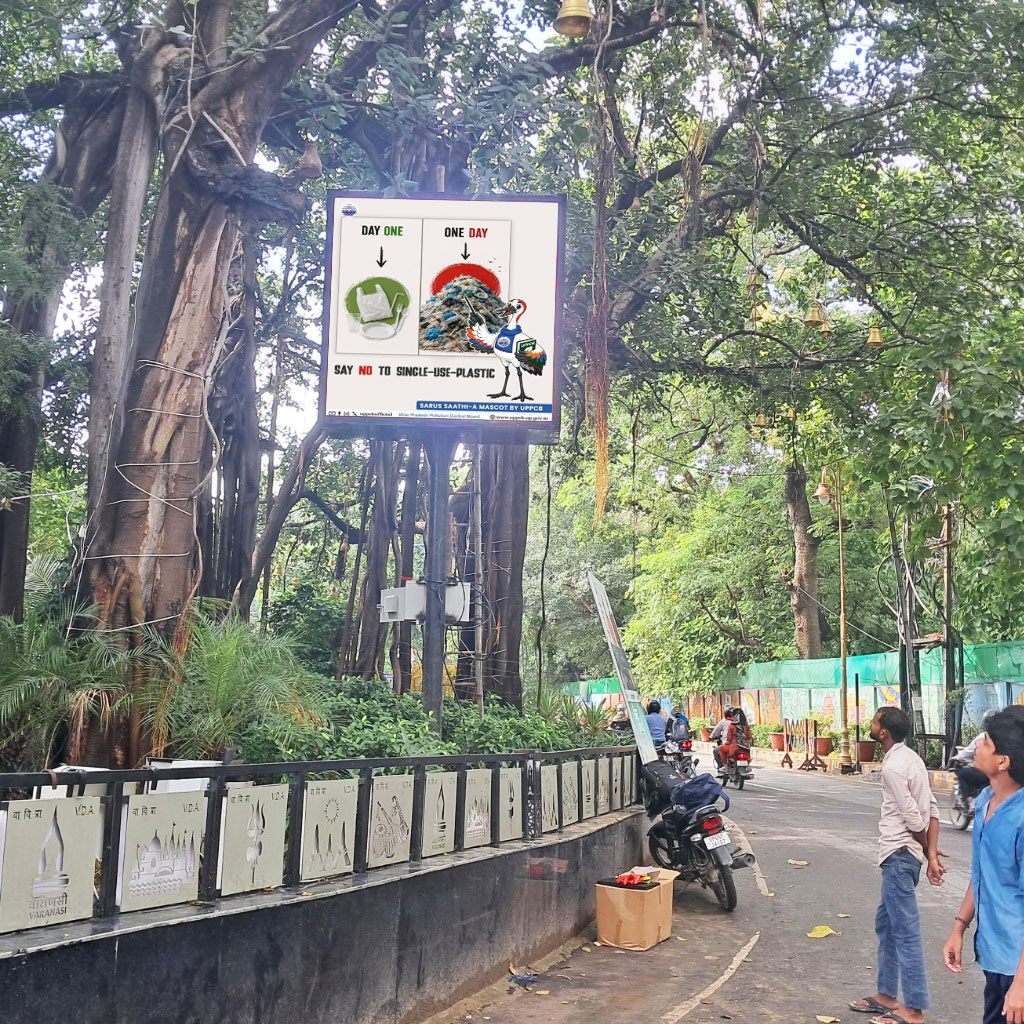

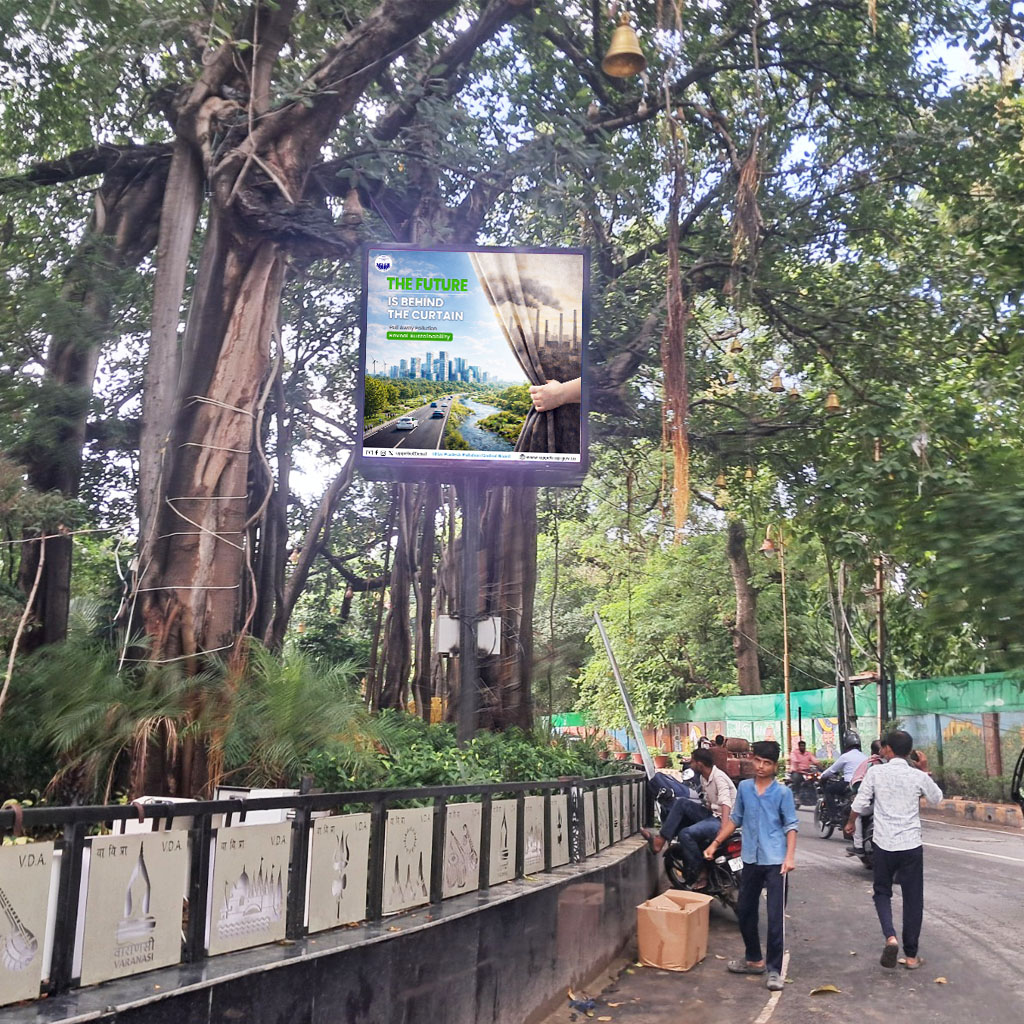

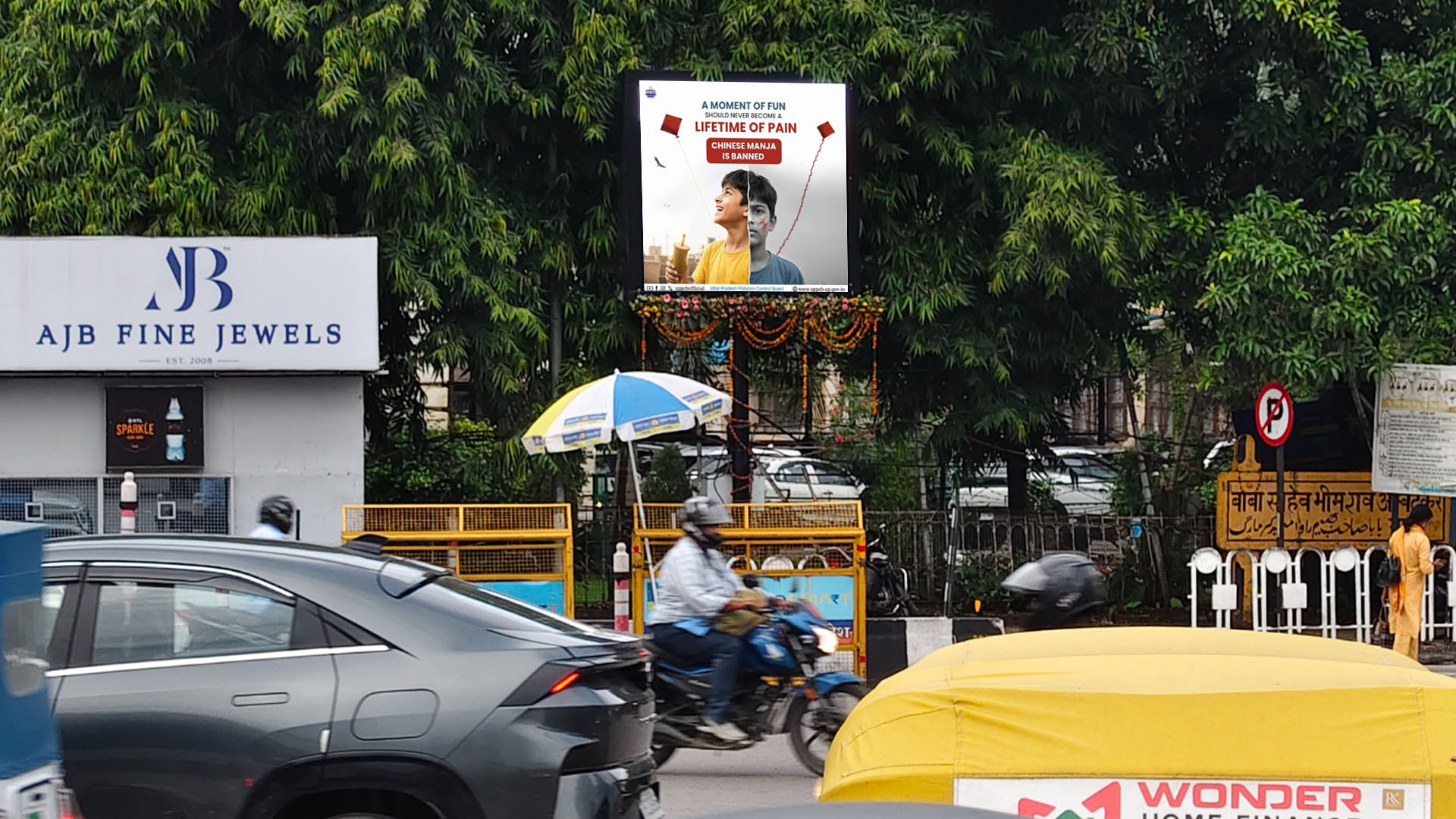

Project Gallery
